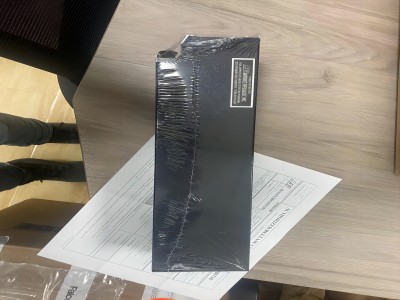

822-0615-207 Collins Aerospace ALT-4000 - R/T, RAD ALT. 429 OUTPUTS. FIXED TRIPS

    Low Range Radio Altimeter
    Form & fit replacements of discontinued ALT-50A/-55B (see P/N chart below for specific replacement information)
    Intended for single installations certified for Category II landings and for dual or triple installations in Category IIIa (ALT-1000 is intended for single installations in Category II ONLY)
    Measures radar height above terrain up to 2,500 feet
    Accurate to within two feet at the critical low altitudes
    Entirely digital, allowing for complete end-to-end monitoring
    Frequency-Modulated Continuous Wave (FMCW) technology
    Versions with analog outputs capable of driving existing indicators
    Analog outputs in ALT-55B or ARINC 552A format - strap selectable
    Four ARINC 429 digital buses
    Used with ANT-52 antennas
    Available with standard or shop-adjustable trips (see table below)
    Full temperature/altitude capability
    Stringent lightning and HIRF hardening
    Single unit packaged in a 3/8 ATR short-low package
    Package and aircraft mounting are identical to the ALT-55B
    Lightweight at 4.7 pounds with additional aircraft installation delay selections that can reduce antenna cable weight
    Front panel computer port for system configuration and access to system faults
    Computer interface that allows for flight simulation to aid checks of associated systems
    Versions compatible with Collins FPA-80 Flight Profile Advisory aural alert unit
    Versions available that directly plug in and  the ｒｅｐｌａｃｅ ALT-55B/-50A


SPECIFICATIONS

FAA TSO:C87SOFTWARE:DO-178B Level A (critical)
EUROCAE:ED-14CENVIRONMENTAL:DO-160C, /A2F2/BB/ CLMNY/E1XXXXXZ/ BZ/AZ/AZ/ Y/AZ/Z3Z3/XX
DIMENSIONS:3.313" H x 3.562" W x 13.925" LWEIGHT:4.7 lb
COOLING:No forced air requiredTEMPERATURE:-55°C to 70°C
ALTITUDE:55,000 ft.POWER REQ:28 ± 20% V DC, 16 W
CENTER FREQ:4300 ±15 MHzRF POWER OUTPUT:350 mW nominal
MODULATION:Selectable, 49, 50 or 51 HzLINEAR FM DEVIATION:100 MHz, nominal
ALTITUDE OUTPUTS:Four isolated busesDIGITAL:Binary Label 164; BCD Label 165 per ARINC 429, 707
ANALOG:Two isolated outputs, strap selectable modeARINC 552A MODE:-20 to +480 ft; 0.2 (h+20)Vdc +480 to +2,500ft; 10 + 10 In Vdc
ALT-55 MODE:-20 to +500ft; 0.02(h+20)VdcSYSTEM ACCURACY:500 to 2,500 ft ±3%
OUTPUT LOADING:20 standard loads per bus(digital); 1mS max (analog)TIME CONSTANT:0.09 ± 0.01s
TRIPPED OUTPUTS:< +1.5Vdc @ 100mA maxUNTRIPPED OUTPUTS:< 20µA @ 30Vdc max
FACTORY TRIP:-125: 200, 500, 1000, 1500ft (adj); -026: 200, 250, 1000, 1200ft (fixed); -206/306: 200, 250, 1000, 1200ft (adj)DELAY (AID) SELECTIONS:20, 26, 32, 40, 46, 52, 57, 63ft
PART NUMBER:DESCRIPTION:
822-0615-125Adjustable Trips, Analog out, Replaces ALT-55B -001/-011
822-0615-126Fixed Trips, Analog out, Replaces ALT-55B -002/-012
822-0615-1755G Replacement for ALT-55B PN 622-2855-011
822-0615-205Fixed Trips, 429 out
822-0615-206Adjustable Trips, 429 out
822-0615-305Fixed Trips, 429 & Analog out
822-0615-306Adjustable Trips, 429 & Analog out


Receive a Quick Quote for Part Number 822-0615-207 by Bombardier Corp

Part NumberAlternate P/NItem NameManufacturer (CAGE)
822-0615-2078220615207Altimeter Radio Alt 4000Bombardier Corp

We are pleased to announce that part number 822-0615-207 is now available within our inventory and ready to ship. Manufactured by Bombardier Corp this part is a Altimeter Radio Alt 4000. Are you interested in a quick quote for 822-0615-207 part number? Simply fill out the form below to get begin. Your quote will take into account your answers to the fields “Needs Parts By” and “Quantity” in particular. A sales representative will respond to your RFQ by email or by phone within 15 minutes of receiving this form.
